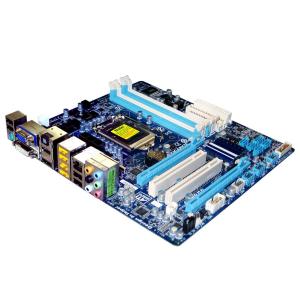

GA H55M-UD3H 4DR3 MATX
+ zoomez sur l'image
GA H55M-UD3H 4DR3 MATX 6S2 GL 12USB2 2I3E HDMI DP
| Prix : | 111.00 € |
| 92.50 € HT |
72h SUR COMMANDE
MEMO
Format : MATX
Processeur : Intel Core i7/i5/i3
Socket : LGA1156
Chipset : Intel H55 Express
Mémoire : DC 4DDR31666 (OC)/1333/1066/800
Slot expansion : 1PCIe x16, 1PCIe x4, 2PCI
POINTS FORTS
- Support processeur Intel Core i7/i5/i3 socket 1156
- Support RAM DDR3 1666 (OC) max
- Chipset Intel H55
- Ports eSATA et IEEE 1394 Firewire
- Ports DVI-D & HDMI/Display port
- Technologie Ultra Durable 3
- Technologie Smart6
- Conforme standard EuP (economie d'energie)
- Technologie Dynamic Energy Saver 2
CARACTERISTIQUES TECHNIQUES
Modèle
GA-H55M-UD2H
Processor
1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/Intel® Core™ i3 series processor in the LGA 1156 package
(Go to CPU Support List for the latest CPU support )
2. L3 cache varies with CPU
Chipset
1. Intel H55 Express chipset
Memory
1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1600(OC)/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme memory Profile (XMP)memory modules
(Go to Memory Support List for the latest memory support list.)
Onboard graphics
Integrated in the Chipset :
1x D-Sub port
1x DVI-D port
1x HDMI port
1x DisplayPort
Audio
1. Realtek ALC889 codec
Realtek ALC888B codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out
5. Support for CD In
LAN
1. 1 x Realtek 8111D chips (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slots, running at x16
(The PCI Express slots conform to PCI Express 2.0 standard.)
2. 1 x PCI Express x16 slot, running at x4 (PCIe X4)
3. 2 x PCI slots
Multi-graphics technology
1. Support for ATI CrossFireX technology
Storage Interface
Chipset:
1. 5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
2- 1x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device
JMicron JMB368 chip :
1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8720 chip:
1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
1. Integrated in the chipset
2. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
IEEE 1394
1- T.I TSB43AB23 chip
2- Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 5 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF In header
12. 1 x S/PDIF Out header
13. 1x IEEE 1394a header
14. 1 x serial port header
15. 1 x clearing CMOS jumper
16. 3 x USB 2.0/1.1 header
Rear Panel I/O
1. 1 x PS/2 keyboard or PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port
6. 1 x optical S/PDIF Out connector
7. 1 x HDMI port
8. 1 x DisplayPort
9. 1 x IEEE 1394a port
10. 6 x USB 2.0/1.1 port
11. 1 x eSATA 3Gb/s connector
12. 1 x RJ45 port
13. 6 x audio jacks (center/subwoofer speaker out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O
1. iTE IT8720 chip
H/W Monitoring
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
8. Support for Dynamic Energy Saver 2
9. Support for Q-Share
10. Support SMART6
11. Support Auto Green
Bundle Software
1. Norton Internet Security (OEM version)
Operating System
1. Support for Microsoft® Windows®7/Vista/XP
Form Factor
1. MATX Form Factor; 24.4cm x 23cm
