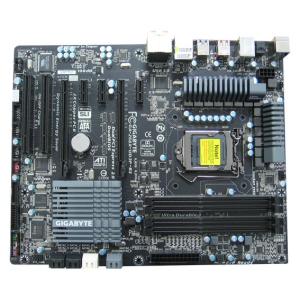

GA-Z68X-UD3 Z68X 4DR3 GL
+ zoomez sur l'image
GA-Z68X-UD3 Z68X 4DR3 GL USB3 RAID S3
| Prix : | 134.35 € |
| 111.96 € HT |
72h SUR COMMANDE
MEMO
Format : ATX
Processeur : Intel Core i3/i5/i7/Pentium/Celeron
Socket : 1155
Chipset : Intel Z68 Express
Mémoire : DC 4 DDR3 2133/1866/1600/1333/1066
Slot expansion : 2PCIe x16, 3PCIe x1, 2PCI
CARACTERISTIQUES TECHNIQUES
Modèle
GA-Z68X-UD3P
Type
Carte mère
Processeur
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package (Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cache varies with CPU
Chipset
1. Intel® Z68 Express Chipset
Mémoire
1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Audio
1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby® Home Theater
5. Support for S/PDIF Out
Réseau
1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Port d'expansion
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIe x8 slots share bandwidth with the PCIEX16 slot. When the PCIe x8 slots is populated, the PCIEX16 slot will operate at up to x8 mode.
3. 3 x PCI Express x1 slots
(All PCI Express slots conform to PCI Express 2.0 standard.)
4. 2 x PCI slots
Technologie Multi-cartes graphiques
Support for ATI CrossFireX™/NVIDIA SLI technology
* The PCIEX16 slot operates at up to x8 mode when ATI CrossFireX™ is enabled.
Interface de Stockage
Chipset:
1. 2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
2. 4 x SATA 3Gb/s connectors (SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 4 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
Marvell 88SE9172 chip:
1. 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
2. Support for SATA RAID 0 and RAID 1
USB
Chipset:
1. Up to 14 USB 2.0/1.1 ports (8 on the back panel, 6 via the USB brackets connected to the internal USB headers)
2 x Eltron EJ168 chips:
1. Up to 4 USB 3.0/2.0 ports (2 on the back panel, 2 via the USB brackets connected to the internal USB headers)
IEEE 1394
VIA VT6308 chip :
- Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to tne internal IEEE 1394a header)
Connecteurs d'entrées/sorties internes
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 4 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 2 x system fan headers
7. 1 x power fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 3 x USB 2.0/1.1 headers
12. 1 x USB 3.0/2.0 headers
13. 1 x serial port header
14. 1 x clearing CMOS jumper
15. 1 x IEEE 1394a header
16. 1 x Trusted Platform Module (TPM) header
Connecteur du Panneau Arrière
1. 1 x PS/2 keyboard/mouse port
2. 1 x optical S/PDIF Out connector
3. 1 x IEEE 1394 port
4. 8 x USB 2.0/1.1 ports
5. 2 x USB 3.0/2.0 ports
6. 2 x eSATA 6Gb/s ports
7. 1 x RJ-45 port
8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
Contrôleur d'Entrée/Sortie
1. iTE IT8728 chip
Monitorage Matériel
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control
*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
1. 2 x 32 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Fonctionnalités Exclusives
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
8. Support for Dynamic Energy Saver™ 2
9. Support for Smart 6™
10. Support for Auto Green
11. Support for eXtreme Hard Drive (X.H.D)
12. Support for ON/OFF Charge
13. Support for Cloud OC
14. Support for Q-Share
Logiciels Fournis
1. Norton Int
