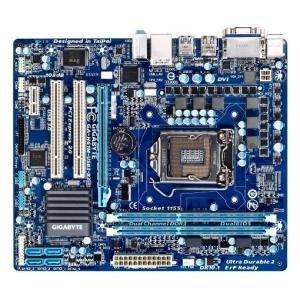

GIG H61M-USB3-B3 2DR3
+ zoomez sur l'image
GIG H61M-USB3-B3 2DR3 GL 4S2 USB3
| Prix : | 82.32 € |
| 68.60 € HT |
72h SUR COMMANDE
MEMO
Format : MATX
Processeur : Intel Core i7/i5/i3/Pentium/Celeron
Socket : LGA1155
Chipset : Intel® H61 Express
Mémoire : DC 2DDR3 1333/1066/800
Slot expansion : 1PCIe x16, 1PCIe x1, 2PCI
POINTS FORTS
- Design VRD 12 (Voltage Regulator Down) : Conception 100% hardware
- Technologie Ultra Durable 2
- Alimentation CPU 4 Phase
- Intel® HD Graphics Core 2000/3000
- Technologie innovante On / Off Charge
- Technologie DualBIOS™ 3TB+ HDD (Hybrid EFI)
- Interface SuperSpeed USB 3.0
- Port USB alimenté 3x
- Fonction Smart 6- Monitoring PC intelligent
- Auto-green
CARACTERISTIQUES TECHNIQUES
Modèle
GA-H61M-USB3-B3
Type
Carte mère MATX
Processeur
1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/Intel® Core™ i3 series processor/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
(Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cache varies with CPU
Chipset
1. Intel® H61 Express Chipset
Mémoire
1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Carte Graphique Intégrée
Integrated in the Chipset:
1. 1 x D-Sub port
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
Audio
1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Réseau
1. 1 x Atheros AR8151 chip (10/100/1000 Mbit)
Port d'expansion
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots
Interface de Stockage
Chipset:
1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB
Chipset:
1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Etron EJ168 chip:
1. Up to 2 USB 3.0/2.0 ports on the back panel
Connecteurs d'entrées/sorties internes
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 2 x USB 2.0/1.1 headers
9. 1 x parallel port
10. 1 x serial port
11. 1 x clearing CMOS jumper
Connecteur du Panneau Arrière
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 4 x USB 2.0/1.1 ports
6. 2 x USB 3.0/2.0 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In/Line Out/Microphone)
Contrôleur d'Entrée/Sortie
1. iTE IT8728 chip
Monitorage Matériel
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
1. 2 x 32 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Fonctionnalités Exclusives
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
8. Support for Smart 6™
9. Support for Auto Green
10. Support for ON/OFF Charge
11. Support for Cloud OC
12. Support for Q-Share
Logiciels Fournis
1. Norton Internet Security (OEM version)
Système d'Exploitation
1. Support for Microsoft® Windows 7/Vista/XP
Dimensions
1. Micro ATX Form Factor; 24.4cm x 20.5cm
