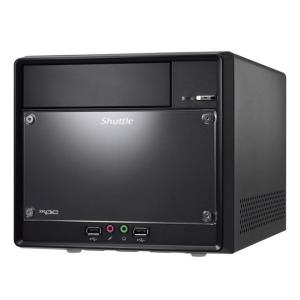

SHU SH61R4 1155 (i7/5/3)

SHU SH61R4 1155 (i7/5/3)
+ zoomez sur l'image
Version imprimable
Description :
SHU SH61R4 1155(i7/5/3) 2DR3 PCIE DVI S3 USB3 ALU Heat Pipe
Prix :   210.30 €
  175.25 € HT
Stock :
72h SUR COMMANDE
Plus d'info :
POINTS FORTS

Châssis en aluminium + heat pipe
- Support CPU Intel Core i3/i5/i7 2nd génération
- Support jusqu'à 8Go de RAM DDR3
- Support jusqu'à 2 HDD internes
- 3x PCIe2.0 x16
- Interface USB 3.0
- 6 canaux audio
- Compatible SE Linux


CARACTERISTIQUES TECHNIQUES

Modèle
SH61R4

Type
Barebone

Coloris
Noir

Matériau
Aluminium

Chassis
Black aluminum chassis with acrylic front plate
Customizable front panel design:
simply change the mylar and add your individual design
such as a photo, graphics or a company logo to the front panel.
Storage bays: 1 x 5.25" (external), 2 x 3.5" (internal)
Dimensions: 32.5 x 21.5 x 19 cm (LWH) = 13.3 liters (without foot rubber)
Weight: 3.2 kg net / 5.0 kg gross

Mainboard / Chipset
Shuttle mainboard FH61, Shuttle form factor,
proprietary design for XPC SH61R4
Chipset/Southbridge: Intel® H61 Express (Codename: Cougar Point)
Platform Controller Hub (PCH) as Single-Chip-Solution
Passive chipset cooling with heat sink
The Northbridge is integrated into the processor.
Solid Capacitors for sensitive areas provide excellent
heat resistance for enhanced system durability

BIOS
AMI BIOS, SPI Interface, 32MBit Flash-ROM
Supports PnP, ACPI 3.0, Hardware Monitoring
Supports boot up from external USB flash memory
Supports Unified Extensible Firmware Interface (UEFI) ***

Power supply
250 Watt mini power supply unit
Input voltage range: 100~240V
Connectors: 20-pin ATX, 4-pin ATX12V
Other connectors: 4x SATA, 2x Molex, 1x Floppy
Graphics power connector: 6 pins
Active PFC (Power Factor Correction)

Processor support
Socket 1155 (LGA 1155) supports next generation of
Intel Core i3 / i5 / i7 desktop processors with up to 95W TDP
Codename "Sandy Bridge", 32nm process technology
Not compatible with older Socket-1156 processors.
The Processor integrates PCI-Express, memory controller
and the graphics engine on the same die
Please refer to the support list for detailed processor support information.

Heat-pipe processor cooling
Shuttle I.C.E. (Integrated Cooling Engine)
advanced I.C.E. heat-pipe technology, linear controlled 92mm fan
SilentX cooling and noise reduction technology with Active Airflow

Memory support
2 x 240 pin slots
Supports DDR3-1066/1333 SDRAM memory (PC3-8500/10600)
Supports Dual Channel mode
Supports max. 4 GB per DIMM, maximum total size of 8 GB

Expansion Slots
1x PCI-Express x16 v2.0 slot (PEG, for graphics cards only)
1x PCI-Express x1 v2.0 slot, open-ended ****)
1x Mini-PCI-Express x1v2.0 half/full-size slot (for the optional WLAN module)
Supports Dual-slot (double-width) graphics cards -
in this case the second PCI-Express slot will be occupied.
With 6 pin power connector for the graphics card.
If a discrete graphics card is used, the onboard graphics will be deactivated.

Integrated Graphics
Intel® HD Graphics 2000/3000 integrated in the processor
Supports Pixel Shader 4.1, DirectX 10.1
Maximum shared memory size: 1692MB
Supports DVI, max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub, max. resolution up to 2048x1536 @ 75Hz
(optional VGA-to-DVI-adapter required)
Supports HDCP function with DVI and HDMI ports (HDMI via optional adapter)
Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
Supports Dual-Independent-Display via DVI-D and DVI-I port **)

HD audio
Audio Codec: IDT 92HD89C, 5.1 channel
Three analog audio connectors (3.5mm) at the Back-Panel:
line-in (blue), line-out (green) and microphone input (pink)
shared with 5.1 channel line-out (front, rear, center/bass)
Front panel: microphone input and head phone output (line-out)

Gigabit LAN
Realtek RTL 8111E Ethernet network controller
PCI Express interface
IEEE 802.3u 1000Base-T compliant
Supports 10 / 100 / 1.000 MBit/s operation
Supports Wake-on-LAN (WOL)

Drive connectors
4x Serial ATA rev. 2.0, max. 3 Gbit/s (onboard)

Front Panel connectors and buttons
Microphone input (3.5 mm)
Headphone output (3.5 mm)
2x USB 2.0
Power button
Power indicator (Blue LED)
Hard disk drive indicator (Yellow LED)

Back Panel connectors
DVI-D **) supports HDMI with optional adapter
DVI-I **) supports analog VGA with optional adapter
6x USB 2.0
2x USB 3.0
GigaBit LAN (RJ45)
Audio Line-out (3.5 mm)
Audio Line-in (3.5 mm)
Microphone Input (3.5 mm)
Clear CMOS button
optional: Serial RS232 port (Accessory: "H-RS232")
3x perforations for optional WLAN antennas

Other connectors
2x USB 2.0 (2x5 pins) - occupied by front panel
1x RS232 serial interface (2x5 pins)
2x fan connectors (4 pins and 3 pins)
Audio AUX input

Included Accessories
Multilanguage XPC Installation Guide
32/64bit driver disk including Adobe Reader software
2 pre-installed SATA cables
Power Cord
Screws
Heatsink Compound
Cable straps
