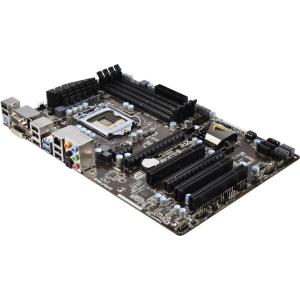

ASR Z77 PRO4 S1155

ASR Z77 PRO4 S1155
+ zoomez sur l'image
Version imprimable
Description :
Asrock P9Z77 Pro3 s1155-DDR3 SATA3/USB3/PCI-EX 3.0
Prix :   112.57 €
  93.81 € HT
Stock :
72h SUR COMMANDE
Plus d'info :
Technologie XFast 555 : XFast RAM / XFast LAN / XFast USB


POINTS FORTS

- Format : ATX
- Processeur : Intel Core i7/i5/i3/Pentium/Celeron
- Socket : 1155
- Chipset : Intel Z77
- Mémoire : 4DDR3 2800+/2400/2133/1866/1600/1333/1066
- Slot expansion : 2PCIe x16, 1PCIe x1, 2PCI

- XFast 555 : XFast RAM / XFast LAN / XFast USB
- Technologie Lucid Virtu Universal MVP
- Technologie Intel Smart Connect
- Technologie Intel Rapid Start
- Technologie de modulation numérique Digi Power
- Standard PCIe 3.0
- Fonction Asrock OMG (Online Management Guard)
- Fonction Internet Flash
- Prise en charge Intel HD Graphics
- Technologie audio THX TruStudio
- Interface graphique du BIOS UEFI
- Logiciel de tuning AXTU
- Technologie On/Off Play
- Suite multimédia MAGIX


CARACTERISTIQUES TECHNIQUES

Modèle
Z77 Pro3

Type
Carte mère
Version boîte

CPU
Proc. : Intel Core i7/i5/i3/Pentium/Celeron
Socket : 1155
Spécificité(s) :
- Digi Power Design
- Phase d’alimentation avancée 4 + 1
- Support technologie Intel® Turbo Boost 2.0
- Compatible CPU débloqués Intel® K-Series
- Prise en charge de la technologie Hyper-Threading

Chipset
Intel® Z77

Mémoire
DIMM : 4
Support : DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066
Architecture : Dual Channel
Capacité max : 32Go
Spécificité(s) :
- Support module non-ECC, unbuffured
- Support module XMP

Carte graphique
Type : intégré au processeur
Modèle : Intel® HD Graphics 2500/4000
Spécificité(s) :
- Mémoire partagée 1760Mo
- Multi-Display : D-Sub, HDMI
- Support AMD CrossFireX (Dual et Quad)

Slots d´extension
PCIe x16 :
- 1PCIe x16 (x16) v3.0
- 1PCIe x16 (x4) v2.0
PCIe x1 : 1
PCI : 2

SATA
SATA 3 6Gb/s :2
SATA 2 3Gb/s : 4
eSATA : -
Spécificité(s) :
- Support fonction RAID 0,1,5,10

Réseau
Chipset : Realtek RTL8111E
Port LAN : 1x RJ45
Vitesse : 10/100/1000Mbps (gigabit)
Spécificité(s) :
- Support de la fonction Wake-On-LAN
- Compatible avec la fonction de détection de câble LAN
- Fonction d’économie d’énergie Ethernet 802.3az
- Supporte PXE

Audio
Codec : Realtek ALC892
Canaux : 7.1
Spécificité(s) :
- Audio HD
- Prise en charge de l'audio Premium Blu-ray
- Compatible THX TruStudio™

Ports USB
USB 3.0 :
- 2x USB 3.0 à l'arrière
- 2x USB 3.0 internes
USB 2.0 :
- 4x USB 2.0 à l'arrière
- 6x USB 2.0 internes
Spécificité(s) : -

Interface E/S arrière
1x Port clavier PS/2
1x port D-Sub
1x port HDMI
4x Ports USB 2.0
2x Ports USB 3.0
1x port LAN RJ-45 avec LED (ACT/LINK LED et SPEED LED)
Prise Connecteurs Jack HD Audio

Interface E/S interne
4x SATA2 3.0 Go/s
2x SATA3 6.0 Go/s
1x module infrarouge
1x module infrarouge
1x port COM
1x HDMI_SPDIF
1x Connecteur de LED d'alimentation
Connecteur pour ventilateur de CPU/Châssis/ventilateur
Connecteur d'alimentation ATX 24-pin
Connecteur d'alimentation 8-pin 12V
1x Connecteur panneau audio frontal
3x USB 2.0 (6 ports USB 2.0 max)
1x onboard USB 3.0 ( 2 ports USB 3.0 max)

BIOS
BIOS de type UEFI 64 MB avec interface graphique
Support du "Plug et Play"
Compatible ACPI 1.1
Fonction de configuration sans jumpers (Jumperfree)
Support SMBIOS 2.3.1
CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Tension

Format
Facteur forme : ATX
Dimensions : 30.5 cm x 19.3 cm

OS
Microsoft Windows 7/ Vista/ XP
