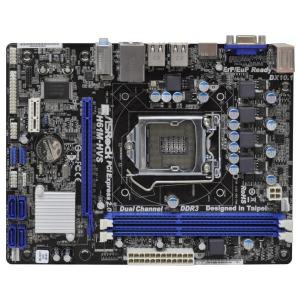

ASR H61M-HVS 1155 MATX 2D
+ zoomez sur l'image
ASR H61M-HVS 1155 MATX 2DR3 GL VGA HDMI
| Prix : | 58.80 € |
| 49.00 € HT |
72h SUR COMMANDE
MEMO
Format : MATX
Processeur : 2nd Generation Intel® Core™ i7/i5/i3
Socket : 1155
Chipset : Intel® H61
Mémoire : DC 2DDR3 1333/1066
Slot expansion : 1PCIe2.0 x16, 1PCIe2.0 x1
POINTS FORTS
- Conception Solid Capacitor pour alimentation CPU
- Support CPU Intel K-Series
- Support Intel HD Graphics + Visuals
- Dual VGA Output Options : D-Sub and HDMI
- Supports ASRock XFast USB Technology, Graphical UEFI BIOS
- Combo Cooler Option (C.C.O.)
- Supports ASRock Extreme Tuning Utility (AXTU), Instant Boot, Instant Flash, Good Night LED, APP Charger, SmartView
CARACTERISTIQUES TECHNIQUES
Modèle
H61M-HVS
Type
Carte mère
CPU
- Supports 2nd Generation Intel® Core™ i7 / i5 / i3 in LGA1155 Package
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPU
- Supports Hyper-Threading Technology
Chipset
- Intel® H61
Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
Graphics
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX)
- Pixel Shader 4.1, DirectX 10.1
- Max. shared memory 1759MB
- Dual VGA Output: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with HDMI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port
*Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.
**Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.
Audio
- 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
LAN
- Realtek PCIE x1 LAN RTL8105E
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
Slots
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
Connector
- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
*Please noted that AHCI mode is not supported under Windows® XP/XP 64bit OS.
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x HDMI Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- SmartView
- ASRock XFast USB
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM and Trial, Creative Sound Blaster X-Fi MB - Trial)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor: 8.9-in x 6.8-in, 22.6 cm x 17.3 cm
- Solid Capacitor for CPU power
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
