Carte Mère ASROCK AMD
+ zoomez sur l'image

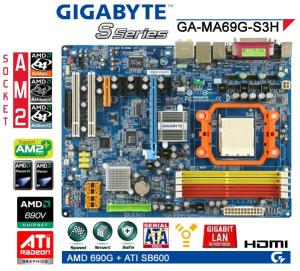

GA MA69G-S3H AM2 4D2 ATX +VGA GL I3E 4S2
MEMO
Format : ATX
Processeur : AMD Phenom™FX processor/ AMD Phenom™ processor/ AMD Athlon™ 64 FX processor/AMD Athlon™ 64 X2 Dual-Core processor/AMD Athlon™ 64 processor/AMD Sempron™
Socket : Socket AM2+/ A
| Prix : | 68.58 € |
| 57.15 € HT |
72h SUR COMMANDE
POINTS FORTS
- Support AMD AM2+ Phenom*/ AM2 Athlon séries 64
- Support Mémoires DDR2 800
- ATI™ Radeon™ X1250 intégré
- Interfaces graphiques PCI-Express
- Support ATI CrossFire technology
- SATA 3Gb/s intégré et fonctions RAID
- Gigabit Ethernet et Firewire IEEE1394
- Contrôleur audio ALC 889A
- Support Blu-ray / HD DVD.
- Interface HDMI intégré et HDCP
- Support Windows Vista Premium
CARACTERISTIQUES TECHNIQUES
CPU
1. Support for Socket AM2+/ AM2 processors: AMD Phenom™FX processor/ AMD Phenom™ processor/ AMD Athlon™ 64 FX processor/AMD Athlon™ 64 X2 Dual-Core processor/AMD Athlon™ 64 processor/AMD Sempron™ processor.
(Note) If you install AMD AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec; however, the frequency of AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
Chipset
1. North Bridge Chipset: AMD 690G
2. South Bridge Chipset: ATI SB600
3. Super I/O chip: ITE IT8716
4. Integrated Peripherals
1. Realtek RTL8110 Gigabit Ethernet
2. Realtek ALC889A Audio Codec
Memory
1. 4 DDR2 DIMM memory slots (supports up to 16GB memory)(Note 1)
2. Supports dual channel DDR2 800/667/533/400 DIMMs
3. Supports 1.8V DDR2 DIMMs
(Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation.
Internal I/O Connectors
1. 1 24-pin ATX power connector
2. 1 4-pin ATX 12V power connector
3. 1 floppy connector
4. 1 IDE connector
5. 4 SATA 3Gb/s connector
6. 1 CPU fan connector
7. 1 system fan connector
8. 1 front panel connector
9. 1 front audio connector
10. 1 CD In connector
11. 1 SPDIF In/Out connector
12. 1 TV Out connector
13. 2 IEEE 1394a connector
14. 3 USB 2.0/1.1 connector for additional 6 USB 2.0/1.1 ports by cables
15. 1 COMB connector
16. 1 Power LED connector
17. 1 Chassis Intrusion connector
Expansion Slots
1. 1 PCI Express x 16 slot
2. 1 PCI Express x 4 slot
3. 3 PCI Express x 1 slot
4. 2 PCI slot
Rear Panel I/O
1. 1 PS/2 keyboard port
2. 1 PS/2 mouse port
3. 1 D-Sub port
4. 1 parallel port
5. 1 HDMI port
6. 1 SPDIF Out port (optical)
7. 1 IEEE 1394a port
8. 4 USB 2.0/1.1 port
9. 1 RJ-45 LAN port
10. 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
Power
1. ATX power connector and ATX 12V connector
Form Factor
1. ATX form factor; 30.5cm x 22.9cm
H/W Monitoring
1. System voltage detection
2. CPU / System temperature detection
3. CPU / System fan speed detection
4. CPU / System warning temperature
5. CPU fan failure warning
6. Supports CPU Smart Fan function(Note 2) (Note 2) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
BIOS
1. 1 4Mbit flash ROM
2. Use of licensed AWARD BIOS
3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Other Features
1. Supports @BIOS
2. Supports Download Center
3. Supports Q-Flash
4. Supports EasyTune (only supports Hardware Monitor function)(Note 3)
5. Supports Xpress Install
6. Supports Xpress Recovery2
7. Supports Xpress BIOS Rescue
(Note 3) EasyTune functions may vary depending on different motherboards.
