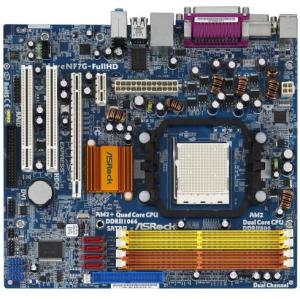

Carte Mère ASROCK MATX
+ zoomez sur l'image
ASR ALIVENF7G-FULLHD NF7050 AM2 MATX 4DR800 PCIE GL S2 FHD
MEMO
Format : MATX
Processeur : AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core /Athlon X2 Dual-Core / Athlon 64 / Sempron
Socket : socket AM2/AM2+
Chipset : NVIDIA® GeFor
| Prix : | 57.16 € |
| 47.63 € HT |
72h SUR COMMANDE
POINTS FORTS
- AMD Live Ready
- Supporte jusqu'à 8Go de RAM DDRII-800
- Technologie ASRock AM2 Boost
- GPU NVIDIA GeForce serie7
- Sortie Dual VGA
- Support DVI-D
- Support format HDCP
- Support Full HD 1080p
- Support Blu-ray disc & HD-DVD
- Support NVIDIA PureVideo
- 4 connecteurs SATA avec fonction RAID
CARACTERISTIQUES TECHNIQUES
CPU
- Support for Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core /Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- AMD LIVE!™ Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
*If you use AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.
Chipset
- NVIDIA® GeForce 7050 / nForce 630A MCP
Memory
- Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 800/667/533 non-ECC, un-buffered memory
- Max. capacity: 8GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Graphics
- Integrated NVIDIA® GeForce7 Series (NV44)
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Dual VGA Output: support DVI-D and D-Sub ports by independent display controllers
- Supports HDCP function with DVI-D port
- Supports Blu-ray (BD) / HD-DVD playback up to 1080p
- NVIDIA® PureVideo™ Ready
Audio
- 5.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC662 Audio Codec)
- Chipset embedded HDMI Audio
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY RTL8211B
- Supports Wake-On-LAN
Slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector
- 4 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM Port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x WiFi/E header
Rear Panel I/O
ASRock 6CH_DVI I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Hybrid Booster
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x COM port bracket
- 1 x HDMI_SPDIF cable (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
OS
- Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
