K8N68PV-GLAN S754 MATX PC

K8N68PV-GLAN S754 MATX PC

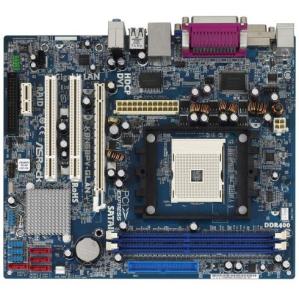

+ zoomez sur l'image
Version imprimable
Description :
K8N68PV-GLAN S754 MATX PCIE 4SATA2
Prix :   70.24 €
  58.53 € HT
Stock :
72h SUR COMMANDE
Plus d'info :
MEMO

Format : Micro ATX
Processeur : AMD Athlon 64, Sempron
Socket : Socket 754
Chipset : NVIDIA® GeForce 7050 / nForce 630A MCP
Mémoire : DDR400/333/266
Slot expansion : 1 PCIe x16, 1 PCIe 1, 2 PCI


POINTS FORTS

- Socket 754 pour processeur AMD Athlon-64
- Chipset NVIDIA GeForce 7050
- Support 2Go max RAM DDR400
- GPU NVIDIA GeForce7 Series
- Support Microsoft DirectX 9.0
- 1 PCIe x16
- 4 port SATAII avec fonction RAID
- Connectique GIGABIT LAN
- Support Dual VGA
- Support format HDCP
- Support NVIDIA PureVideo
- Support signal HDMI


CARACTERISTIQUES TECHNIQUES

Modèle
K8N68PV-GLAN

Processeur
- Socket 754 for AMD Athlon™ 64 and Sempron Processors
- Supports AMD's Cool 'n' Quiet Technology
- Chipset capable to FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology

Chipset
- NVIDIA® GeForce 7050 / nForce 630A MCP

Mémoire
- 2 x DDR DIMM slots
- Supports DDR400/333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB

Bios
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support

Graphique
- Integrated NVIDIA® GeForce7 Series (NV44)
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- Supports HDCP function with DVI-D port
- NVIDIA® PureVideo™ Ready

Audio
- 5.1 CH High Definition Audio (Realtek ALC662 Audio Codec)
- Chipset embedded HDMI Audio

LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211B
- Supports Wake-On-LAN

Slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots

Connecteurs
- 4 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM Port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 4 x USB 2.0 headers (support 8 USB 2.0 ports)

Panneau arrière
ASRock 6CH_DVI I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Line in / Front Speaker / Microphone

Hybrid Booster
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)

Accessoires
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 power cable (optional)

Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor
- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant

Certifications
- FCC, CE, WHQL
