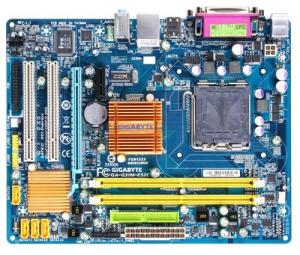

GG G31MES2C G31 MATX
+ zoomez sur l'image
GG G31MES2C G31 MATX 2DR800 1333 4S2 8USB
| Prix : | 47.56 € |
| 39.63 € HT |
72h SUR COMMANDE
MEMO
Format : MATX
Processeur : Intel® Core™ 2 Extreme/Core™ 2 Quad /Core™ 2 Duo/Pentium® processor Extreme/Pentium® D /Pentium® 4 processor Extreme/Pentium® 4/Celeron
Socket : socket 775
Chipset : Intel® G31 Express + Intel® ICH7
Mémoire : Dual Channel DDR2 1066(O.C.)/800/667
Slot expansion : 1 PCIe x16, 1 PCIe x1, 2 x PCI
POINTS FORTS
- Technologie révolutionnaire DES Advanced
- Support Processeur Intel Core2 multi-cœurs
- Support processeur gravé a 45nm
- Technologie Solid Capacitor
- Support RAM DDR2-1066 en overclocking
- GPU Intel GMA3100
- 8 canaux audio HD
- DualBios
- Technologie S2 : Smart et Safe
CARACTERISTIQUES TECHNIQUES
Modèle
GA-G31M-ES2C
Processor
1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
2. L2 cache varies with CPU
Front Side Bus
1. 1600(O.C.)/1333/1066/800 MHz FSB
Chipset
1. North Bridge: Intel® G31 Express Chipset
2. South Bridge: Intel® ICH7
Memory
1. 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
2. Dual channel memory architecture
3. Support for DDR2 1066(O.C.)/800/667 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Onboard Graphics
1. Integrated in the North Bridge
Audio
1. Realtek ALC883 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel (Note)
4. Support for S/PDIF Out
5. Support for CD In
Note: To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.
* To set up an 8 channel audio configuration, you must use 5.1/7.1 Surround Cable (Optional). Please refer to the Accessories for more detail information.
LAN
1. RTL 8102E chip (10/100 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot
2. 1 x PCI Express x1 slot
3. 2 x PCI slots
Storage Interface
South Bridge:
1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718 chip:
1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
1. Integrated in the South Bridge
2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 4 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF Out header
12. 2 x USB 2.0/1.1 headers
13. 1 x chassis intrusion header
14. 1 x power LED header
Rear Panel I/O
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In/Line Out/Microphone)
I/O
1. iTE IT8718 chip
H/W Monitoring
1. System voltage detection
2. CPU temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU fan speed control
BIOS
1. 2 x 4 Mbit flash
2. Use of licensed AWARD BIOS
3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Virtual DualBIOS
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
8. Support for Easy Energy Saver
Bundle Software
1. Norton Internet Security (OEM version)
Operating System
1. Support for Microsoft®Windows Vista/XP
Form Factor
1. Micro ATX form factor; 24.4cm x 19.4cm
