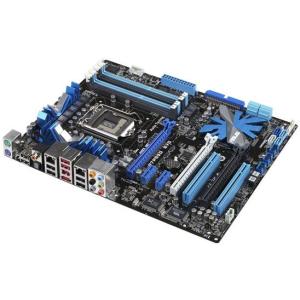

ASUS P7P55D 1156 ATX
+ zoomez sur l'image
ASUS P7P55D 1156 ATX P55 4DR2133 3PCIE SLI+CROSSFIRE GL
| Prix : | 125.17 € |
| 104.31 € HT |
72h SUR COMMANDE
MEMO
Format : ATX
Processeur : Core i7/i5
Socket : socket 1156
Chipset : P55
Mémoire : DC 4DDR3 2000/1600/1333/1066
Slot expansion : 2PCIe 2.0 x16, 1PCIe 2.0 x16, 2PCIe 2.0 X1, 2PCI
POINTS FORTS
- Nouveau Socket 1156
- Support nouveau processeur Core i7/i5
- Chipset Intel P55
- Support technologie SLI Quad GPU
- Support technologie ATI CrossFireX Quad GPU
- Technologie Asus Q-Design (Q-LED, Q-Slot, Q-Dimm)
- Technologie Asus Hybrid Phase (12+2)
- Technologie Asus EPU
- Technologie Asus Extreme Design
- Asus Hybrid OS - Express Gate
- Technologie Asus Crystal Sound
- Technologie Asus EZ DIY
- Dual Gigabit LAN
- Interfaces SATA2 avec support RAID
- Connecteur eSATA et Firewire
- 8 canaux audio HD
CARACTERISTIQUES TECHNIQUES
Modèle
P7P55D EVO
CPU
Intel® Socket LGA 1156 Core™ i7 Processor / Core™ i5 Processor Supports Intel® Turbo Boost Technology
(Voir liste de compatibilité sur le site www.asus.com)
Chipset
Intel® P55 Express Chipset
Memory
Architecture Dual Channel (double canal)
4 x DIMM 240-pin, Max. 16GB, DDR3 2133(O.C.)/1600(O.C.)/1333/1066 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
**Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
Expansion Slots
2 x PCIe 2.0 x16 slots (single at x16 or dual at x8/x8 mode)
1 x PCIe 2.0 x16 slot (at x4 mode, 2.5GT/s)
2 x PCIe 2.0 x1 slots (2.5GT/s)
2 x PCI
Multi-GPU Support
Support NVIDIA Quad-GPU SLI Technology
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage
Intel P55 Express Chipset :
- 6 xSATA 3 Gb/s ports
- Intel Matrix Storage Technology supports Support RAID 0,1,5,10
JMicron® JMB363 PATA and SATA controller :
- 1x UltraDMA 133/100/66 for up to 2 PATA devices
- 1x eSATA 3.0 Gb/s port (SATA on-the-go)
JMicron JMB322 controller (Drive Xpert Technology) :
- 2x SATA 3.0 Gb/s ports (darl blue and gray)
- Support EZ Backup and Super Speed functions
*Drive Xpret function is available only when the hard disk drives are set as data drives.
LAN
Dual Gigabit LAn controller
Realtek® 8112L/8110SC Gigabit LAN controller featuring AI NET2
Audio
VIA VT1828S 8 -Channel High Definition Audio CODEC
- Absolute Pitch BD192/24
- DTS Surround Sensation UltraPC
- BD audio layer Content Protection
- Support Jack-Detection, Multi-streaming and Front Panel Jack-Retasking
- Coaxial/Optical S/PDIF out ports at back I/O
IEEE 1394
VIA® 6308p controller supports 2 x 1394a ports (one at mid-board; one at back panel)
USB
14x USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)
Asus Q-Design
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
ASUS Unique Features
ASUS Hybrid Processor - ASUSTurboV EVO :
- AUto Tuning, TurboV and Turbo Key
ASUS Hybrid Phase :
- T.Probe Technology for Active Cooling
- 12+2 Phase Power Design
ASUS Hybrid OS - Express Gate
ASUS Exclusive Features:0
- ASUS Drive Xpert
- Mem OK!
- ASUS EPU
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 3
- ASUS Fan Xpert
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS My Logo 2
- Multi-language BIOS
Overclocking Features
Precision Tweaker 2 :
- vCore: Adjustable CPU voltage at 0.00625V increment
- vIMC : Adjustable IMC voltage at 0.00625V increment
- vDRAM Bus : 81-step DRAM voltage control
- vPCH : 2-step chipset voltage control
- vCPU_PLL : 4-step reference voltage control
SFS (Stepless Frequency Selection) :
- Intrenal Base Clock tuning from 80Mhz up to 500Mhz at 1Mhz increment
- PCI Express frequency tuning from 100Mhz up to 200Mhz at 1Mhz increment
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1x Clear CMOS button
1 x Optical S/PDIF Output
1 x IEEE 1394a
1 x eSATA 3.0 Gb/s port (SATA on-the-go)
2 x LAN(RJ45) port
8 x USB 2.0/1.1
8 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x IDE connector
6 x SATA connectors
2 x Drive Xpert SATA connecotr (dark blue and gray)
1 x CPU Fan connector
2 x Chassis Fan connector(1x 4-pin, 1x 3-pin)
1 x Power Fan connector
1 x IEEE 1394a connector
1 x COM port connector
Front panel audio connector
1 x S/PDIF Out connector
CD audio in
24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)
1 x MemOK! button
1 x Power on switch
1 x Reset switch
BIOS
16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories
User's manua
