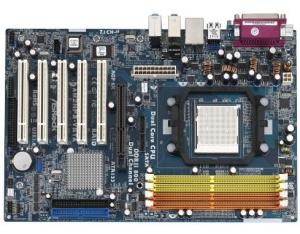

ASR AM2NF3 VSTA AM2 ATX
+ zoomez sur l'image
ASR AM2NF3 VSTA AM2 ATX AGP 4DR800 2SATA 2IDE 8USB
| Prix : | 56.80 € |
| 47.33 € HT |
72h SUR COMMANDE
MEMO
Format : ATX
Processeur : AMD Phenom X4 / Athlon™ 64 FX / Athlon™ 64 X2 Dual-Core / Athlon™ 64 / Sempron™
Socket : socket 940 (AM2)
Chipset : NVIDIA® nForce3 250
Mémoire : 4 DualChannel DDR2 800/667/533/400 8GoMax
Slot expansion : 1 AGP 8X/ 5 PCI
SATA/ USB2.0 / Son 7.1 channels
POINTS FORTS
- Chipset NVIDIA nForce3 250
- Technologie Hyper Transport
- Technologie AMD Cool'n'Quiet
- Technologie Hybrid booster
- Technologie Asrock Safe Iverclocking
- Compatible Windows Vista
- Canaux audio 7.1
CARACTERISTIQUES TECHNIQUES
CPU
- AMD Phenom™ X4* / X2, Athlon 64FX / 64X2 / X2 / 64 and Sempron processors
- Supports AMD's Cool 'n' Quiet Technology
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
Chipset
- NVIDIA® nForce3 250
Hybrid Booster
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Memory
- Dual Channel DDRII memory technology
- 4 x DDRII DIMM slots
- Supports DDRII800/667/533
- Max. capacity: 8GB
Slot
- 5 x PCI slots
- 1 x AGP 8X slot
Audio
- C-Media CM6501 7.1 channel audio compliant with UAA architecture
LAN
- Realtek PHY RTL8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
Connector
- 2 x Serial ATA 1.5 Gb/s connectors, support RAID (RAID 0, RAID 1, JBOD) and "Hot Plug" functions
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB23 ports on the I/O panel)
Rear Panel I/O ASRock 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- Audio Jack: Side Speaker / Rear Speaker / Central Bass / Line in / Front Speaker / Microphone
BIOS Feature
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
Form Factor
- ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ compliant
Certifications
- FCC, CE, WHQL
