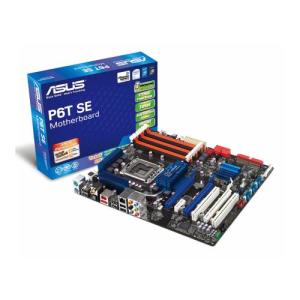

ASUS P6T-SE ATX 1366 X58
+ zoomez sur l'image
ASUS P6T-SE ATX 1366 X58 6DR2000 3PCIE 2I3E GL
| Prix : | 195.10 € |
| 162.58 € HT |
72h SUR COMMANDE
Plateforme Intel Corei7 : Une nouvelle ère pour des performances ultimes!
MEMO
Format : ATX
Processeur : INTEL Core i7 series
Socket : LGA 1366
Chipset : X58+ICH10R
QPI : jusqu'à 6.4GT/s
Mémoire : Triple Canaux DDR3 DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333/1066
Slot expansion : 3PCIe 2.0 x16, 1PCIe x1, 2PCI
POINTS FORTS
- Socket LGA1366 pour processeur Intel Core i7
- Chipset Intel X58
- Support PCIe 2.0
- Support technologie ATI CrossFIre
- Technologie Asus TurboV
- Design Alimentation 8+2phase
- Technologie Asus Express Gate
- Solution de refroidissement silencieuse speciale Asus
- Technologie Asus Crystal Sound
- Ports eSATA
- Port IEEE 1394a Firewire
- 8 canaux HD
CARACTERISTIQUES TECHNIQUES
Modèle
P6T SE
CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed Technology
Chipset
Intel® X58 / ICH10R
System Bus
Up to 6400 MT/s ; Intel® QuickPath Interconnection
Memory
6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333/1066 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
*Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
Expansion Slots
3 x PCIe 2.0 x16 (at x16/x16/x4 mode)
1 x PCIe x1
2 x PCI
Multi-GPU Support
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage
Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology supports Support RAID 0,1,5,10
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xExternal SATA 3Gb/s port (SATA On-the-Go)
*Due to the Windows XP/ Vista limitation, the RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only. For more information, please refer to http://support.microsoft.com/kb/946557/en-us
LAN
Realtek® 8111C PCIe Gigabit LAN controller featuring AI NET2
Audio
Realtek® ALC1200 8 -Channel High Definition Audio CODEC
Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
Coaxial / Optical S/PDIF out ports at back I/O
ASUS Noise-Filtering
IEEE 1394
VIA® VT6315N controller supports 2 x 1394a ports (one at mid-board; one at back panel)
USB
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
ASUS Unique Features
ASUS Exclusive Features:
- ASUS TurboV
- ASUS 8+2 Phase Power Design
- Express Gate
ASUS Power Saving Solution
- ASUS EPU-6 Engine
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Fan Xpert
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.00625V increment
- vChipset (N.B.): 31-step chipset voltage control
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment
- Internal Base Clock tuning from 100MHz up to 500MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS
ASUS MyLogo 2
Back Panel I/O Ports
1 x External SATA
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1 x Coaxial S/PDIF Output
1 x Optical S/PDIF Output
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
Front panel audio connector
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)
1 x Power on switch
BIOS
16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories
User's manual
1 x UltraDMA 133/100/66 cable
4 x SATA cable
2 in 1 Q-connector
ASUS Q-Shield
Support Disc
Drivers
ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
Image-Editing Suite
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
