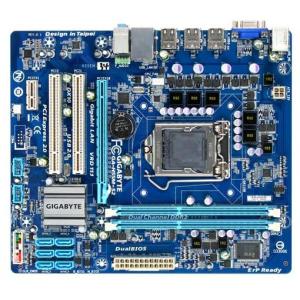

GA H55M-S2 MATX 2DR3 GL
+ zoomez sur l'image
GA H55M-S2 MATX 2DR3 GL 6S2
| Prix : | 85.79 € |
| 71.49 € HT |
72h SUR COMMANDE
MEMO
Format : MATX
Processeur : ntel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 / Intel® Pentium®
Socket : LGA1156
Chipset : Intel® H55 Express
Mémoire : DC 2DDR3 1666 (O.C.)/1333/1066/800
Slot expansion : 1PCIe x16, 1PCIe x1, 2PCI
POINTS FORTS
- On/Off Charge : port de charge rapide pour iPhone, iPad et iPod Touch
- Ports USB alimentés 3X powerBoost
- 3DMARK VANTAGE E8000+ marks
- Socket LGA1156 pour CPU Intel Core i série
- Technologie Cloud OC
- Technologie Hotkey OC
- Technologie AutoGreen
- Technologie breveté DualBios
CARACTERISTIQUES TECHNIQUES
Modèle
GA-H55M-S2
Type
Carte mère
CPU
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cache varies with CPU
Chipset
1. Intel® H55 Express Chipset
Memory
1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1666 (O.C.)/1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Onboard Graphics
Integrated in the Chipset:
1. 1 x D-Sub port (Note 2)
Audio
1. Realtek ALC888B codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel (Note 3)
LAN
1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots
Storage Interface
Chipset:
1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
USB
Integrated in the Chipset
1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 6 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 2 x USB 2.0/1.1 headers
9. 1 x clearing CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port (Note 2)
4. 8 x USB 2.0/1.1 ports
5. 1 x RJ-45 port
6. 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
1. iTE IT8720 chip
H/W Monitoring
1. System voltage detection
2. CPU temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU fan speed control (Note 4)
BIOS
1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 5)
8. Support for Auto Green
9. Support for ON/OFF Charge
10. Support for Q-Share
Bundle Software
1. Norton Internet Security (OEM version)
Operating System
1. Support for Microsoft® Windows 7/Vista/XP
Form Factor
1. MicroATX Form Factor; 24.4cm x 21.0cm
