TL-SG1008D Switch 8 ports

TL-SG1008D Switch 8 ports
+ zoomez sur l'image
Version imprimable
Description :

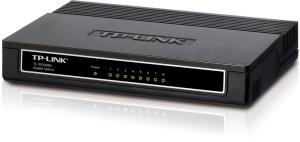

TL-SG1008D Switch 8 ports Gigabit
Prix :   36.00 €
  30.00 € HT
Stock :
72h SUR COMMANDE
Plus d'info :
PRESENTATION

Switch 8 port gigabit Ethernet (10/100/1000 Mbps), le TL-SG1008D combine haute performance, faible coût et simplicité d'utilisation.


POINTS FORTS

- Switch 8 ports
- Gigabit Ethernet 10/100/1000 Mbps
- MAC address self-learning and et MDI/MDIX


CARACTERISTIQUES TECHNIQUES

Modèle
TL-SG1008D

Type
Switch

Coloris
Blanc/Noir

Standards and Protocols
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP

Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth
16Gbps

MAC Address Table
4k

Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port

Transmission Method
Store-and-Forward

Ports
8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicators
Power, 10/100M, 1000M

Safety & Emission
FCC, CE

Dimensions (W*D*H)
7.9*5.5*1.1 in. (200*140*28 mm)

Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Power
External Power Adapter
