TD-W8950ND Modem-Routeur
+ zoomez sur l'image

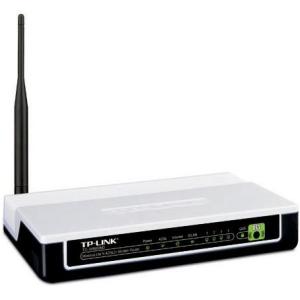

TD-W8950ND Modem-Routeur ADSL 2+ WiFi N 150Mb
| Prix : | 41.34 € |
| 34.45 € HT |
72h SUR COMMANDE
PRESENTATION
Dispositif 3en1, le modem/routeur TPLink TD-W8950ND intègre la technologie sans fil 802.11N qui offre un débit de 150Mbps max.
Ce modèle combine les fonctions d'un modem haute vitesse DSL, d'un routeur NAT 4 ports Fast Ethernet 10/100mbps et d'une point d'accès wifi.
L'ensemble vous permet de créer un réseau sécurisé et haut débit de quoi assurer d'excellentes performances pour les applications consommatrices en bande passantes telles que la vidéo HD en streaming par exemple.
POINTS FORTS
- 3en1 : Modem ADSL + Routeur NAT + Point d'accès Wifi
- Standard sans fil 802.11N 150Mpbs
- Assistant de réglage simple d'utilisation
- Système de cryptage via un bouton QSS
CARACTERISTIQUES TECHNIQUES
Modèle
TD-W8950ND
Type
Modem/Routeur
Coloris
Blanc/Noir
Software Specification
ADSL Features
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt)
ITU-T G.994.1 (G.hs)
ITU-T G.992.3 (G.lite.bis)
ITU-T G.992.5
Max 6 kilometers
Data Rates
Downstream: Up to 24Mbps
Upstream: Up to 1.5Mbps
ATM Features
UNI 3.1,ATM Adaptation Layer Type 5-AAL5
Multiprotocol encapsulation over ATM (RFC 1483)
UBR, CBR, VBR-rt, VBR-nrt
Supports 8PVCs
PPP Features
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC 2516)
Switching
Features
IGMP multicast
IEEE 802.1d transparent learning bridging
Routing Features
Classical IP and ARP over ATM (RFC 1577/2225), MER
Static Routing, IP, TCP, UDP, ARP
NAT, NAPT, DNS, DDNS, DHCP Server
UPnP, Virtual Server, DMZ, Port Trigger
Wireless
Features
Complies with IEEE802.11n 1, IEEE 802.11g, IEEE802.11b
11n: Up to 150Mbps(dynamic)
Security: WEP 64bit/128bit , WPA-PSK/WPA2-PSK , WPA/WPA2
Provides 64/128bit WEP encryption security and wireless LAN ACL (Access Control List)
Max wireless transmit power: 17dbm
Antenna gain: 3dbi
Frequency Range:2.4~2.4835GHz
Security
NAT and SPI Firewall
IP Filtering
MAC filtering
Parental control
IPSec VPN
Support up to 10 IPSec VPN tunnels
VPN Pass
Through
IPSec/PPTP Pass-through
QoS
IP Type of service(ToS)
Device Management
- HTTP
- Administration and operation software (firmware) upgradable locally by web(HTTP)
- CWMP(TR-069)
Hadware Specification
Ports
4 10/100M LAN Ports(RJ45)
1 Line Port(RJ11)
LED Indicators
Power, Internet, ADSL, WLAN, LAN1~4,QSS
Dimensions (W*D*H)
174 x 120 x 28.8 mm
Environment
Operating Temperature: 0oC~40oC (32oF~104oF)
Storage Temperature: -40oC~70 oC(-40oF~158oF)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
