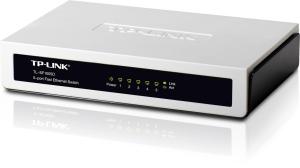

TL-SF1005D Switch 5 ports
+ zoomez sur l'image
TL-SF1005D Switch 5 ports 10/100Mb
| Prix : | 16.90 € |
| 14.08 € HT |
72h SUR COMMANDE
PRESENTATION
Switch 5 ports Fast Ethernet, le TL-SF1005D supporte les mode Auto-Negociation et Auto MDI / MDIX sur chacun des ports RJ45.
Économique, simple d'utilisation et performant.
POINTS FORTS
- 5 ports Fast Ethernet 10/100
- Support mode Auto-Negociation
- Support fonction Auto MDI/MDIX
- Plug & Play
CARACTERISTIQUES TECHNIQUES
Modèle
TL-SF1005D
Type
Switch
Coloris
Blanc/Noir
Standards and Protocols
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
1Gbps
MAC Address Table
1k
Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method
Store-and-Forward
Ports
5 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
LED Indicators
Power, Link/Act (1, 2, 3, 4, 5)
Safety & Emission
FCC, CE
Dimensions (W*D*H)
5.5*3.4*1.1 in. (140*87*27.5 mm)
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power
External Power Adapter
