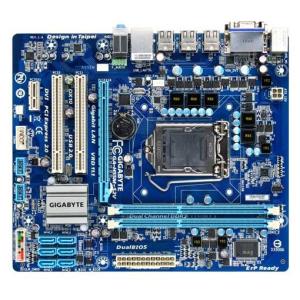

GA H55M-S2V MATX 2DR3 GL
+ zoomez sur l'image
GA H55M-S2V MATX 2DR3 GL 6S2 DVI
| Prix : | 98.28 € |
| 81.90 € HT |
72h SUR COMMANDE
MEMO
Format : MATX
Processeur : Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium
Socket : 1156
Chipset : Intel® H55 Express
Mémoire : DC 2DDR3 2200/1800/1600/1333/1066/800
Slot expansion : 1PCIe x16, 1PCIe x1, 2PCI
POINTS FORTS
- Technologie innovante On/Off Charge
- 3x USB Power Boost
- 3DMARK VANTAGE E8000+ marks : performance graphique Intel HD Excellente
- Socket 1156 pour CPU Intel Core i 2nd Génération
- Utilitaire Cloud OC & Hotkey OC
- DualBios : protection Double Bios
CARACTERISTIQUES TECHNIQUES
Modèle
GA-H55M-S2V
Type
Carte mère
Processeur
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cache varies with CPU
Chipset
1. Intel® H55 Express Chipset
Mémoire
1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2200/1800/1600/1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Carte Graphique Intégrée
Integrated in the Chipset:
1. 1 x DVI-D port (Note 2)(Note 3)
2. 1 x D-Sub port (Note 2)
Audio
1. Realtek ALC888B codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel (Note 4)
Réseau
1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Port d'expansion
1. 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 2.0 standard.)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots
Interface de Stockage
Chipset:
1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
USB
Chipset:
1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Connecteurs d'entrées/sorties internes
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 6 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 2 x USB 2.0/1.1 headers
9. 1 x serial port header
10. 1 x clearing CMOS jumper
Connecteur du Panneau Arrière
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port (Note 2)
4. 1 x DVI port (Note 2)(Note 3)
5. 8 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Line In/Line Out/Microphone)
Contrôleur d'Entrée/Sortie
1. iTE IT8720 chip
Monitorage Matériel
1. System voltage detection
2. CPU temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU fan speed control (Note 5)
BIOS
1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Fonctionnalités Exclusives
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Auto Green
9. Support for ON/OFF Charge
10. Support for Q-Share
Logiciels Fournis
1. Norton Internet Security (OEM version)
Système d'Exploitation
1. Support for Microsoft® Windows 7/Vista/XP
Dimensions
1. Micro ATX Form Factor; 24.4cm x 21.0cm
