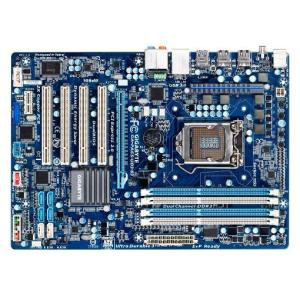

GIG PA65-UD3-B3 4DR3 GL
+ zoomez sur l'image
GIG PA65-UD3-B3 4DR3 GL 2S3
| Prix : | 87.19 € |
| 72.66 € HT |
72h SUR COMMANDE
MEMO
Format : ATX
Processeur : Intel Core i7/i5/i3/Pentium/Celeron
Socket : LGA1155
Chipset : Intel® H61 Express
Mémoire : DC 4DDR3 1333/1066/800
Slot expansion : 1PCIe x16, 1PCIe x1, 4PCI
POINTS FORTS
- Design VRD 12 : conception 100% hardware
- Technologie Ultra Durable 3
- Technologie innovante On/Off Charge
- Ports SuperSpeed USB 3.0 : 5Gb/s
- Interfaces SATA3 : 6Gb/s
- Port USb alimenté 3x
- DualBIOS 3TB + HDD
- Combiné de technologie Smart6
- Technologie Dynamic Energy Saver 2
- AutoGreen
CARACTERISTIQUES TECHNIQUES
Modèle
GA-PA65-UD3-B3
Type
Carte mère ATX
Processeur
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
(Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cache varies with CPU
Chipset
1. Intel® H61 Express Chipset
Mémoire
1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Audio
1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
Réseau
1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Port d'expansion
1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)
3. 4 x PCI slots
Interface de Stockage
Chipset:
1. 4 x SATA 3Gb/s connectors (SATA2_0~SATA2_3) supporting up to 4 SATA 3Gb/s devices
Marvell 88SE9172 chip:
1. 2 x SATA 6Gb/s connectors (GSATA3_4, GSATA3_5) supporting up to 2 SATA 6Gb/s devices
2. Support for SATA RAID 0 and RAID 1
USB
Chipset:
1. Up to 10 USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers)
2 x Etron EJ168 chips:
1. Up to 4 USB 3.0/2.0 ports (2 on the back panel, 2 via the USB bracket connected to the internal USB header)
Connecteurs d'entrées/sorties internes
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connecto
3. 2 x SATA 6Gb/s connectors
4. 4 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 2 x system fan headers
7. 1 x power fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 2 x USB 2.0/1.1 headers
12. 1 x USB 3.0/2.0 header
13. 1 x serial port header
14. 1 x clearing CMOS jumper
Connecteur du Panneau Arrière
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x coaxial S/PDIF Out connector
4. 6 x USB 2.0/1.1 ports
5. 2 x USB 3.0/2.0 ports
6. 1 x RJ-45 port
7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
Contrôleur d'Entrée/Sortie
1. iTE IT8728 chip
Monitorage Matériel
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
1. 2 x 32 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Fonctionnalités Exclusives
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
8. Support for Dynamic Energy Saver™ 2
9. Support for Smart 6™
10. Support for Auto Green
11. Support for ON/OFF Charge
12. Support for Cloud OC
13. Support for Q-Share
Logiciels Fournis
1. Norton Internet Security (OEM version)
Système d'Exploitation
1. Support for Microsoft® Windows® 7/Vista/XP
Dimensions
1. ATX Form Factor; 30.5cm x 21.5cm
