TL-SF1016DS Switch 16 p

TL-SF1016DS Switch 16 p
+ zoomez sur l'image
Version imprimable
Description :

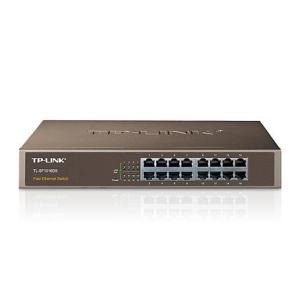

TL-SF1016DS Switch 16 ports métal 10/100Mb rackable
Prix :   50.06 €
  41.72 € HT
Stock :
72h SUR COMMANDE
Plus d'info :
POINTS FORTS

- Switch rackable (kit de fixation en option) 16 ports Fast Ethernet
- Support MAC address sel-learning
- Support Auto MDI/MDIX


CARACTERISTIQUES TECHNIQUES

Modèle
TL-SF1016DS

Type
Switch

Coloris
Marron

Standards and Protocols
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP

Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth
3.2Gbps

MAC Address Table
8k

Forwarding Rate
- 10BASE-T: 14880pps/port
- 100BASE-TX: 148800pps/port

Transmission Method
Store-and-Forward

Ports
16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
- 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)

LED Indicators
Power, Link/Act, 100Mbps

Safety & Emission
FCC, CE

Dimensions (W*D*H)
294 x 180 x 44 mm

Environment
operating Temperature 0oC~40oC (32oF~104oF)
Storage Temperature -40oC~70oC (-40oF~158oF)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Power
100-240VAC, 50/60Hz
