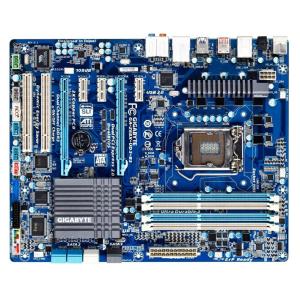

GIG Z68X-UD3-B3 4DR3 GL
+ zoomez sur l'image
GIG Z68X-UD3-B3 4DR3 GL RAID 4S3
| Prix : | 135.46 € |
| 112.88 € HT |
72h SUR COMMANDE
MEMO
Format : ATX
Processeur : Intel® Core™ i7/i5/i3/Pentium/Celeron
Socket : LGA1155
Chipset : Intel® Z68 Express
Mémoire : DC 4DDR3 2133/1866/1600/1333/1066
Slot expansion : 2PCIe x16, 3PCIe x1, 2PCI
POINTS FORTS
- Gigabyte Touch BIOS
- Technologie Intel Smart Reponse
- Gigabyte EZ Smart Reponse
- Design VRD 12 : Conception 100% hardware
- Rapport signal / bruit de 108dB
- DualBIOS™ 3TB+ HDD (Hybrid EFI )
- Innovation On / Off Charge
- Technologie Ultra Durable 3
- Interface USB 3.0
- Interface SATA 6Gbps
- Connecteur USB 3x Power Boost
- Turbo XHD RAID 0
- Multi-display : support with 2 way CrossFireX & SLI
- Smart 6- Monitoring PC intelligent
- Cloud OC
- Hotkey OC
- Unité de contrôle d'Overvoltage
- Dolby Home Theater®
CARACTERISTIQUES TECHNIQUES
Modèle
GA-Z68X-UD3-B3
Type
Carte mère
Processeur
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z68 Express Chipset
Mémoire
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby® Home Theater
Support for S/PDIF Out
Réseau
1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Port d'expansion
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
3 x PCI Express x1 slots
(All PCI Express slots conform to PCI Express 2.0 standard.)
2 x PCI slots
Technologie Multi-cartes graphiques
Support for ATI CrossFireX™ / NVIDIA SLI technology
* The PCIEX16 slot operates at up to x8 mode when ATI CrossFireX™/NVIDIA SLI is enabled.
Interface de Stockage
Chipset:
2 x SATA 6Gb/s connectors (SATA3_0~SATA3_1) supporting up to 2 SATA 6Gb/s devices
4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
1x Marvell 88SE9172 chip:
2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0 and RAID 1
USB
Chipset:
Up to 14 USB 2.0/1.1 ports (8 on the back panel, 6 via the USB brackets connected to the internal USB headers)
2 x Etron EJ168 chips:
Up to 4 USB 3.0/2.0 ports (2 on the back panel, 2 via the USB bracket connected to the internal USB header)
FireWire
VIA VT6308 chip:
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Connecteurs d'entrées/sorties internes
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 headers
1 x IEEE 1394a header
1 x serial port header
1 x clearing CMOS jumper
1 x Trusted Platform Module (TPM) header
Connecteur du Panneau Arrière
1 x PS/2 keyboard/mouse port
1 x optical S/PDIF Out connector
1 x IEEE 1394 port
8 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
Contrôleur d'Entrée/Sortie
iTE IT8728 chip
Monitorage Matériel
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control
*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Fonctionnalités Exclusives
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
