TD-W8961ND Modem-Routeur
+ zoomez sur l'image

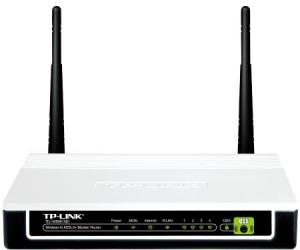

TD-W8961ND Modem-Routeur ADSL 2+ 802.11N
| Prix : | 47.90 € |
| 39.92 € HT |
72h SUR COMMANDE
PRODUCT DESCRIPTION :
300Mbps Wireless N ADSL2+ Modem Router
LAN PORTS :
4 10/100Mbps RJ45 LAN Ports
WAN PORT :
1 RJ11 DSL Port
EXTERNAL POWER SUPPLY :
12VDC/1A
IEEE STANDARDS :
IEEE 802.3, 802.3u
ADSL STANDARDS :
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT) Annex A, ITU-T G.992.2(G.Lite) Annex A, ITU-T G.994.1 (G.hs)
ADSL2 STANDARDS :
ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A
ADSL2+ STANDARDS
ITU-T G.992.5 Annex A/L/M
DATA RATES :
Downstream: Up to 24Mbps
Upstream: Up to 3.5Mbps (with Annex M enabled)
ATM / PPP PROTOCOLS :
ATM Forum UNI3.1/4.0 PVC (up to 8PVCs)
ATM Adaptation Layer Type 5 (AAL5)
ATM QoS (Traffic Shaping)
Bridged and routed Ethernet encapsulation
VC and LLC based multiplexing
PPP over Ethernet (RFC2516)
PPP over ATM (RFC 2364)
IPoA (RFC1577/2225)
MAIN FEATURES :
Dynamic Host Configuration Protocol (DHCP), DHCP relay
Network Address Translation (NAT)
Static Routing, RIP v1/v2
VPN(PPTP, L2TP, IPSec) Pass-through
PVC/Ethernet Port Mapping
VLAN, 802.1P
DNS Relay, DDNS
IGMP Multicast, IGMP snooping V1/2
Virtual server, DMZ, ACL(Access Control List)
UPnP
QOS :
QoS Remarking based on IPP/ToS, DSCP and 802.1p
MANAGEMENT :
Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
SECURITY :
NAT Firewall
SPI Firewall
MAC / IP / Packet / Application / URL Filtering
Denial of Service(DoS), SYN Flooding, Ping of Death
WIRELESS STANDARDS :
IEEE 802.11n, 802.11g, 802.11b
FREQUENCY RANGE :
2.400-2.4835GHz
WIRELESS SPEED :
11N: Up to 300Mbps (dynamic)
WIRELESS SECURITY :
Provides 64/128-bit WEP encryption security and wireless LAN ACL(Access Control List), WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security
WIRELESS TRANSMIT POWER (MAX):
20dBm (max.EIRP)
ANTENNA TYPE :
Omni directional, Detachable, Reverse SMA
DIMENTIONS(W×D×H):
6.9×4.7×1.1 in. (174×120×29mm)
PACKAGE CONTENTS :
300Mbps Wireless N ADSL2+ Modem Router
TD-W8961ND
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter
ENVIRONMENT :
Operating Temperature
0℃,~40℃, (32℉,~104℉,)
Storage Temperature
-40℃,~70℃, (-40℉,~158℉,)
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing
