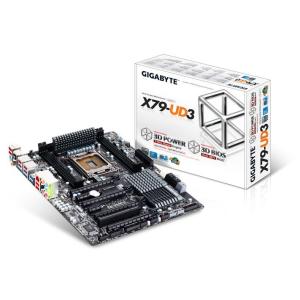

GA X79-UD3 ATX LGA2011
+ zoomez sur l'image
GA X79-UD3 ATX LGA2011 X79 4DR
| Prix : | 185.00 € |
| 154.17 € HT |
72h SUR COMMANDE
POINTS FORTS
- MISE A JOUR BIOS F7 EFFECTUEE
- Format : ATX
- Processeur : Intel Core i7
- Socket : 2011
- Chipset : Intel X79 Express
- Mémoire : Quad Channel 4DDR3 2133/1866/1600/1333/1066
- Slot expansion : 2PCIe x16, 2PCIe x16 (x8), 2PCIe x1, 1PCI
- GIGABYTE 3D Power (innovation propriétaire)
- GIGABYTE 3D BIOS (innovation propriétaire)
- Slot PCI Express Gen.3
- Supports graphiques 4-way SLI/CrossFireX
- Technologie GIGABYTE 333 Onboard Acceleration
- 3x USB Power Boost
- SuperSpeed USB 3.0
- Interface SATA 6 Gbps
- Technologie GIGABYTE On/Off Charge
- Design GIGABYTE Ultra Durable™ 3
- Dolby Home Theater®
CARACTERISTIQUES TECHNIQUES
Modèle
GA-X79-UD3
Type
Carte mère
CPU
- Support for Intel® Core™ i7 processors in the LGA2011 package package
- L3 cache varies with CPU
Chipset
Intel® X79 Express Chipset
Mémoire
( 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
- 4 channel memory architecture
- Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Carte graphique
Support for 4-Way/3-Way/2-Way AMD CrossFireX™/NVIDIA SLI technology.
Slots d´extension
- 2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
- 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
- 2 x PCI Express x1 slots
- 1 x PCI slot
Stockage
Chipset :
- 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
- 4 x SATA 3Gb/s connectors (SATA2 2/3/4/5) supporting up to 4 SATA 3Gb/s devices
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
3x Marvell 88SE9172 chips :
- 4 x SATA 6Gb/s connectors (GSATA3 6/7/8/9) supporting up to 4 SATA 6Gb/s devices
- 2 x eSATA 6Gb/s connectors on the back panel, supporting up to 2 SATA 6Gb/s devices
- Support for RAID 0 and RAID 1
Réseau
1 x Intel GbE LAN (10/100/1000 Mbit)
Audio
- Realtek ALC898 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for Dolby® Home Theater
- Support for S/PDIF Out
Ports USB
Chipset :
- Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)
- 2x Fresco FL1009 Chips :
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Fonctionnalités spécifiques
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress BIOS Rescue
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune
- Support for Smart 6™
- Support for eXtreme Hard Drive (X.H.D)
- Support for ON/OFF Charge
- Support for Cloud OC
- Support for 3TB+ Unlock
- Support for TouchBIOS
- Support for Q-Share
Interface E/S arrière
- 1 x PS/2 keyboard/mouse port
- 1 x optical S/PDIF Out connector
- 1 x coaxial S/PDIF Out connector
- 8 x USB 2.0/1.1 ports
- 2 x USB 3.0/2.0 ports
- 2 x eSATA 6Gb/s connectors
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
Interface E/S interne
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 4 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 4 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 3 x USB 2.0/1.1 headers
- 1 x USB 3.0/2.0 header
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x Trusted Platform Module (TPM) header
Accessoires
Norton Internet Security (OEM version)
BIOS
- 2 x 64 Mbit flash
- Use of licensed AMI EFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Format
ATX Form Factor, 30.5cm x 24.4cm
OS
Support for Microsoft® Windows 7/Vista/XP
