Carte Mère ASROCK Intel
+ zoomez sur l'image

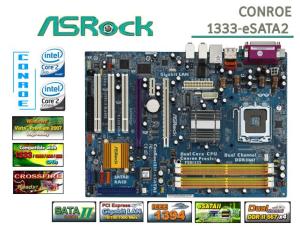

ASR CONROE1333-ESATA2 775 1333 ATX PCIE+AGI 4D2 GL ESATA I3E
MEMO
Format : ATX
Processeur : Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D
Socket : socket 775
Chipset : Intel®
| Prix : | 80.47 € |
| 67.06 € HT |
72h SUR COMMANDE
PRESENTATION
Appartenant à la serie ConRoe1333, la carte mère AsrockCONROE1333-ESATA2 se demarque grâce à 3 specificités : la technologie CrossFire, son interface eSATAII et son port FIrewire IEEE1394.
Developpée pour supporter les dernières technologies du marché elle intègre la fameuse technologie CrossFire lui permettant de combiner le potentiel de 2 cartes graphiques ATI (compatible CrossFire) dans le but d'optimiser le rendu visuel. Son Interface eSATAII correspond à un nouveau standard de connectique permettant à des périphérique externe (ex : boîtier externe SATAII) de se connecter en disposant de la plus grande vitesse de transfert du marché à savoir 3Gb/s (jusqu'alors reservé au periphériques interne : disque dur ou graveur ).
Enfin le port Firewire offre plus de choix au consommateurs pour brancher ses appareils numériques.
Compatible Core2Duo et Core2Extreme, ce modèle dispose des mêmes performances que les autres modèles de sa série à savoir : 4 support Dual Channel pour mémoire DDRII667/533, plusieurs interfaces SATAII avec fonction RAID, un port Gigabit Ethernet 10/100/1000 Mbps sans oublier ses 8 canaux audio haute definition.
Certifiée compatible VISTA et livrée avec son equerre USB +IEEE la carte mère CONROE1333-ESATA2 offre un excellent rapport prix/performance.
POINTS FORTS
- Support Intel Core2Duo & Core52Extreme
- Support FSB1333 max
- Slot Dual Channel DDRII-667 max
- Technologie ATI Cross Ftre
- Slot PCIe x16
- Slot AGI-Express additionnel
- Bonne capacité d'overclocking
- Support Gigabit LAN 10/100/1000 Mpbs
- Interfaces Firewire IEEE1394
- Interfaces SATAII + fontcion Raid
- Interfaces eSATAII
- Support HDMI
- Canaux audio 7.1
- Certifié compatible Windows VISTA
- Fourni avec son equerre USB +IEEE
CARACTERISTIQUES TECHNIQUES
CPU
- LGA 775 for Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D
- Compatible with all FSB1333*/1066/800/533MHz CPUs except Quad Core
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
*FSB1333-CPU will operate in overclocking mode. Under this situation, PCIE frequency will also be overclocked to 115MHz.
Chipset
- Northbridge: Intel® 945P/945G
- Southbridge: Intel® ICH7R
Memory
- Dual Channel DDRII memory technology
- 4 x DDRII DIMM slots
- Supports DDRII667/533
- Max. capacity: 4GB*
*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP, Windows® XP 64-bit, Windows® Vista™ and Windows® Vista™ 64-bit.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B
- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- Supports ATI™ CrossFire™
- 3 x PCI slots
- 1 x PCI Express x16 slot
- 1 x AGI Express slot (PCI Express x4)
- 1 x PCI Express x1 slot
Connector
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ, AHCI and "Hot Plug" functions
- 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII ports), support "Hot Plug" function
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1x Game port header
- 1 x HDMI_SPDIF header
- 2 x IEEE 1394 headers
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- SLI/XFire power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O ASRock 8CH_eSATAII I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x COM Port
- 1 x Parallel Port (ECP/EPP Support)
- 2 x Ready-to-Use USB 2.0 Ports
- 2 x eSATAII Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Free Bundle: USB+1394 bracket, providing 2 additional USB 2.0 ports and 1 IEEE 1394 port
Hybrid Booster
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 cables
- 4 x SATA data cables (optional)
- 2 x SATA 1 to 1 power cables (optional)
- 1 x HDMI_SPDIF cable (optional)
- 1 x USB+1394 bracket
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certification
