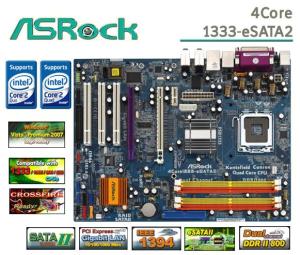

Carte Mère ASROCK Intel
+ zoomez sur l'image
ASR 4CORE1333-ESATA2 775 1333 ATX 2*PCIE 4D2 GL ESATA I3E
MEMO
Format : ATX
Processeur : Intel® Core™ 2 Quad / Core™ 2 Extreme / Core™ 2 Duo / Pentium® XE / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D
Socket : socket 775
| Prix : | 86.87 € |
| 72.39 € HT |
72h SUR COMMANDE
PRESENTATION
Optimisée pour les nouvelles generations d'hardwares et Softwares, la carte mère Asrock 4Core1333-eSATA2 se distingue par son FSB atteingant 1333Mhz et par sa prise en charge du processeur QuadCore Intel Core2Quad.
A noter aussi son port AGIExpress qui permet de mettre en place 2 Cartes graphiques sur une même carte mère grâce à la technologie CrossFire.
Enfin son panel de connectique intègre les interfaces IEEE 1394 Firewire, USB 2.0, SATA2, eSATAII, Gigabit LAN 10/100/1000 Mbps etc.
POINTS FORTS
- Socket 775
- Support Quadcore Intel Core2Quad
- Technologie CrossFire
- Interface eSATAII
- FSB 1333Mhz max
- Port Gigabit LAN 10/100/1000 Mbps
- Interface IEEE 1394 Firewire
- Interface SATAII + fonction RAID
- Certifiée compatible Windows VISTA
CARACTERISTIQUES TECHNIQUES
CPU
- LGA 775 for Intel® Core™ 2 Quad / Core™ 2 Extreme / Core™ 2 Duo / Pentium® XE / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D, supporting Quad Core Kentsfield processors
- Compatible with all FSB1333/1066/800/533MHz CPUs
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Northbridge: Intel® P31/G31
- Southbridge: Intel® ICH7R
Memory
- Dual Channel DDRII memory technology
- 4 x DDRII DIMM slots
- Supports DDRII800/667/533
- Max. capacity: 4GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B / RTL8111C
- Supports Wake-On-LAN
Slots
- Supports ATI™ CrossFire™
- 1 x PCI Express x16 slot
- 1 x AGI Express slot (PCI Express x4)
- 1 x PCI Express x1 slot
- 3 x PCI slots
Connector
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ and AHCI functions
- 1 x eSATAII 3.0 Gb/s connector (shared with 1 SATAII port)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1x Game port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- SLI/XFire power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O ASRock 1394_eSATAII I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATAII Port
- 1 x RJ-45 LAN Port
- 1 x IEEE 1394 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 cables
- 2 x SATA data cables (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x HDMI_SPDIF cable (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
