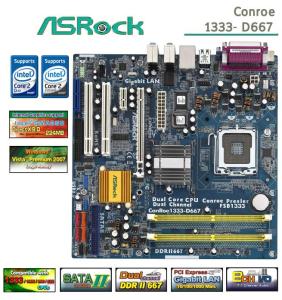

Carte Mère ASROCK MATX
+ zoomez sur l'image
ASR CONROE1333 D667 775 MATX 1333 PCIE DVI / VGA
MEMO
Format : MATX
Processeur : Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D
Socket : socket 775
Chipset : Intel® 945GC A2
| Prix : | 42.67 € |
| 35.56 € HT |
72h SUR COMMANDE
PRESENTATION
Appartenant à la nouvelle serie Asrock Conroe1333, la carte mère CONROE13333-D667 brille par son excellent rapport prix/performance.
Conçue pour supportée les nouvelles generation de processeur Intel Core2Duo/Extreme, elle se distingue par son chipset graphique intégré Intel GMA950 (Intel® Graphics Media Accelerator) et sa parfaite prise en charge des applications Microsoft DirectX 9.0 et PixelShader 2.0.
Avec son slot PCIe x16, ses interfaces SATAII, son port Gigabit LAN 10/100/1000 Mbps, ses canaux audio 7.1 haute definition et sa compatibilité certifié avec le SE Microsoft Windows VISTA Premium, la carte mère Asrock Conroe1333-D667 est parfaite pour les configurations multi-tâches.
POINTS FORTS
- Support Intel Core2Duo/Extreme
- Support FSB 1333Mhz
- Support Dual Channel DDRII-667 max
- Chipset graphique Intel GMA950
- Bonne capacité doverclocking
- Port Gigabit LAN 10/100/1000Mbps
- Interfaces SATAII
- Canaux audio 7.1 haute definition
CARACTERISTIQUES TECHNIQUES
CPU
- LGA 775 for Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D
- Compatible with all FSB1333*/1066/800/533MHz CPUs except Quad Core
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
*FSB1333-CPU will operate in overclocking mode. Under this situation, PCIE frequency will also be overclocked to 115MHz.
Chipset
- Northbridge: Intel® 945GC A2
- Southbridge: Intel® ICH7
Memory
- Dual Channel DDRII memory technology
- 2 x DDRII DIMM slots
- Supports DDRII667/533
- Max. capacity: 4GB*
*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP, Windows® XP 64-bit, Windows® Vista™ and Windows® Vista™ 64-bit.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Graphics
- Intel® Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B
- Supports Wake-On-LAN
Slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
- 1 x HDMR slot
Connector
- 4 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1x COM port header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x COM port bracket
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
CPU COMPATIBLES
775 Core 2 Extreme X6800 2.93GHz 1066MHz 4MB
775 Core 2 Duo E6700 2.66GHz 1066MHz 4MB
775 Core 2 Duo E6600 2.40GHz 1066MHz 4MB
775 Core 2 Duo E6420 2.13GHz 1066MHz 4MB
775 Core 2 Duo E6400 2.13GHz 1066MHz 2MB
775 Core 2 Duo E6400 2.13GHz 1066MHz 2MB
775 Core 2 Duo E6320 1.86GHz 1066MHz 4MB
775 Core 2 Duo E6300 1.86GHz 1066MHz 2MB
775 Core 2 Duo E6300 1.86GHz 1066MHz 2MB
775 Core 2 Duo E4400 2.00GHz 800MHz 2MB
775 Core 2 Duo E4300 1.80GHz 800MHz 2MB
Pour acceder à la liste complète : Cliquez ici
